Nikkor AF-S 28-70mm f/2.8 D IF-ED - Review / Test Report - Analysis
Lens Reviews - Nikon / Nikkor (APS-C)
Article Index
Introduction
Analysis

Distortion

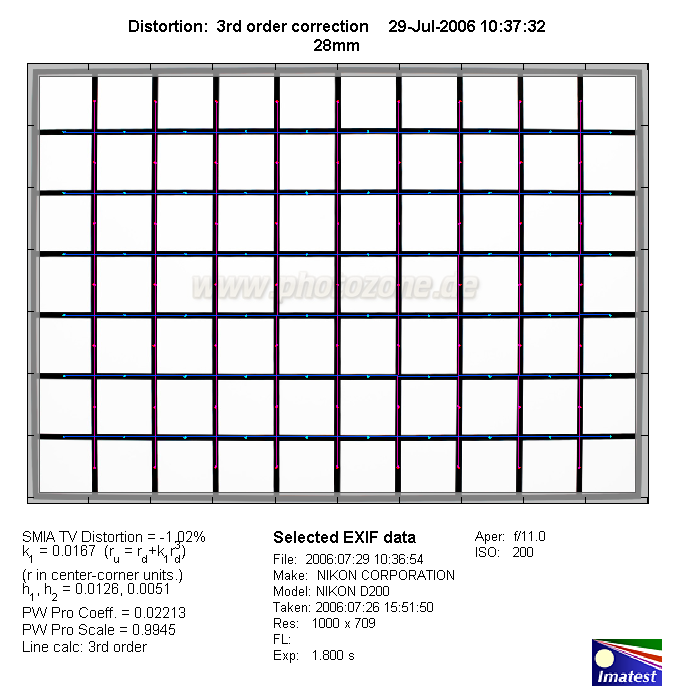

The AF-S 28-70mm ED exhibits a very slight degree of barrel distortion at 28mm decreasing to marginal distortion beyond. This is exceptional for a zoom lens.

Move the mouse cursor over the focal length text marks below to observe the respective distortion
28mm 40mm 70mm

The chart above has a real-world size of about 120x80cm.

Vignetting

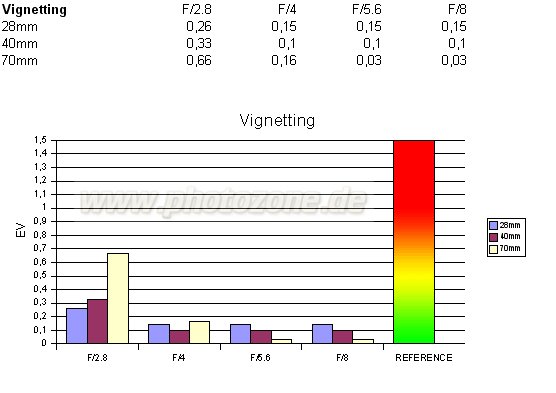

Thanks to the full frame design the Nikkor AF-S 28-70mm ED shows little vignetting on the D200. At 28mm and 40mm the issue is already negligible at wide-open aperture. Interestingly the vignetting increases towards the long end of the zoom range - probably a side effect of the camera sensor characteristic. In very critical situations vignetting may be visible at f/2.8 here - by f/4 the problem is gone already.

MTF (resolution)

The AF-S 28-70mm f/2.8 ED produced very good to excellent resolution figures in the MTF lab. The center resolution is excellent throughout most of the tested aperture range and at all focal length - it scratches and may possibly even exceed the sensor resolution of the D200 at 28mm @ f/4. The borders perform slightly worse than the center but catch up quite nicely when stopping down. There's a marginal decrease in quality at 70mm which may originate in a slight centering defect which is most obvious at this setting.

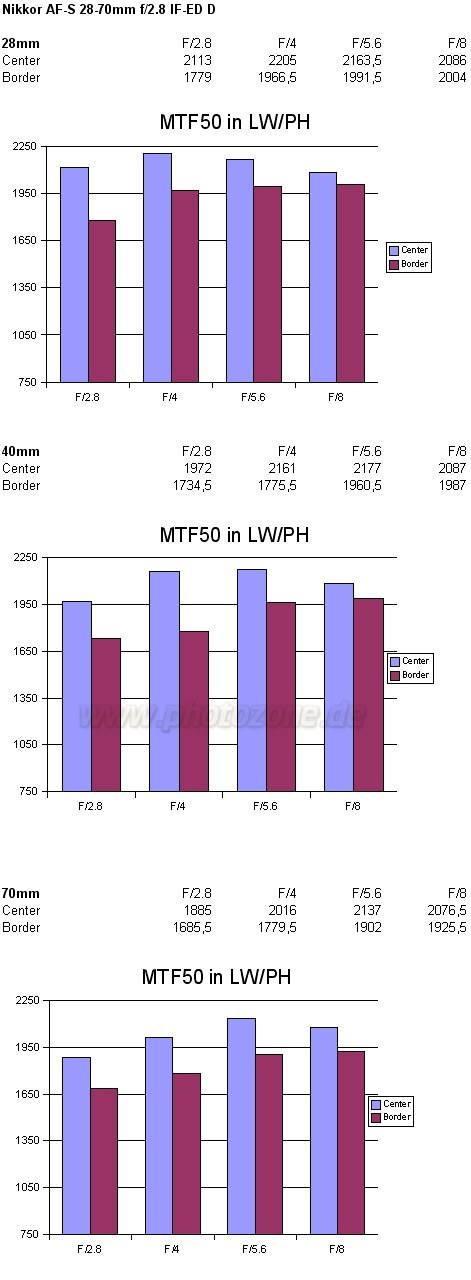

Below is a simplified summary of the formal findings. The chart shows line widths per picture height (LW/PH) which can be taken as a measure for sharpness. If you want to know more about the MTF50 figures you may check out the corresponding Imatest Explanations

Chromatic Aberrations (CAs)

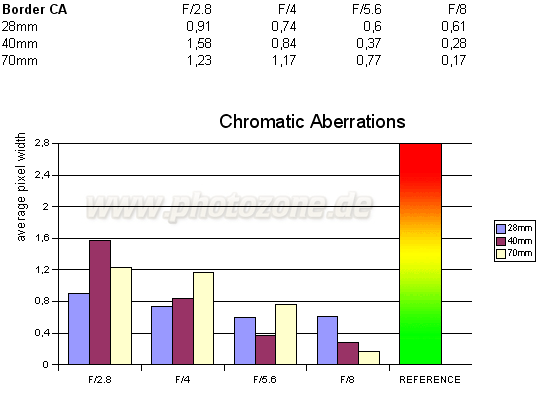

Chromatic aberrations (color shadows at harsh contrast transitions) vary somewhat across the focal length range. At 28mm the issue remains below 1px on the average at the image borders but the issue increases towards 40mm and 70mm at large aperture settings. Please note that lateral CAs can be easily corrected via imaging applications.

Verdict

The Nikkor AF-S 28-70mm f/2.8D IF-ED delivered a very impressive performance in the lab. The resolution figures are very good to excellent with a highly impressive peak performance around f/5.6. The level of distortions is exceptionally low for a zoom lens. CAs are moderate except at 40mm @ f/2.8. Vignetting is very well controlled. The build quality of the lens is superb and it´s a joy to handle it despite its comparatively hefty size and weight. Typical for most classic standard zooms it loses quite a bit of its attraction on APS-C DSLRs - a focal length range equivalent to 42-105mm may not be up to everybody´s taste anymore.

Optical Quality: (just)
Mechanical Quality:
Price/Performance:discontinued
